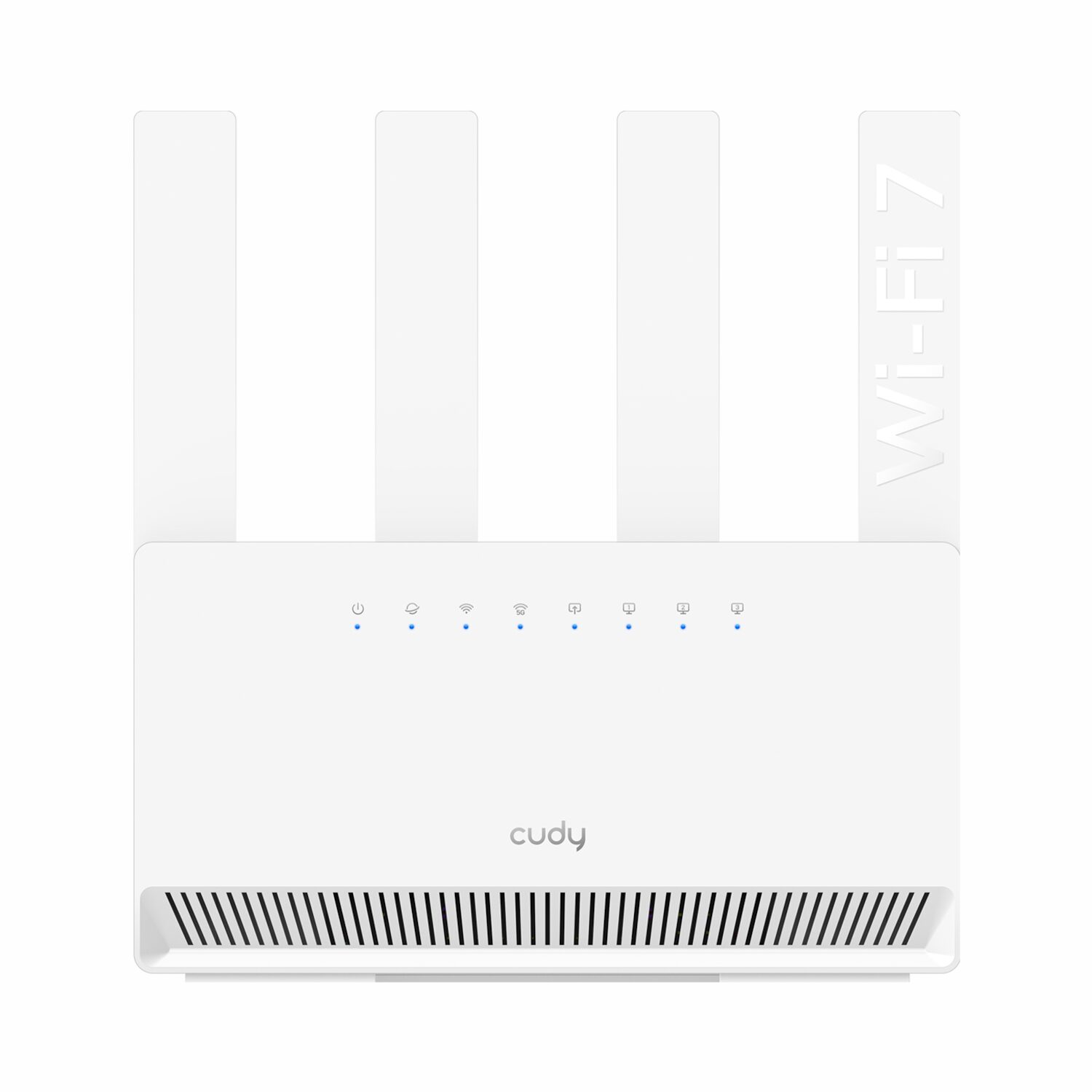

Cudy BE3600E Wi-Fi 7 Gigabit Router

The Cudy BE3600E Wi-Fi 7 Gigabit Router (WR3600E 1.0) is engineered to deliver exceptional wireless performance, catering to the demands of modern households and small businesses. Equipped with a 2 GHz Quad-Core CPU from Broadcom, it ensures seamless data processing and efficient network management. The router’s 4-Stream Dual-Band Wi-Fi 7 technology offers combined speeds of up to 3,570 Mbps—2,882 Mbps on the 5 GHz band and 688 Mbps on the 2.4 GHz band—providing robust and reliable connectivity for multiple devices.​

Designed for expansive coverage, the Cudy BE3600E Wi-Fi 7 Gigabit Router effectively blankets areas up to 130 m², making it suitable for various home and office layouts. Its four Gigabit Ethernet ports facilitate high-speed wired connections, ideal for devices requiring stable and rapid internet access. Supporting up to 200 connected devices, this router is well-suited for environments with numerous smart devices and heavy network traffic. Advanced features such as VPN Server and Client capabilities enhance security for remote connections, while the Cudy App and Cloud Control offer user-friendly management and customization options.​

FEATURES:

• VPN server and client support
• Broadcom 2 GHz Quad-Core CPU
• Cudy app and cloud control management
• Four ports provide high-speed wired connections
• 4-Stream dual-band Wi-Fi 7 delivers speeds of up to 3,570 Mbps
• Effective coverage up to 130 m², suitable for various home and office sizes
• Supports up to 200 connected devices, accommodating numerous smart devices and heavy network traffic

SPECIFICATIONS:

• CPU
• Chipset: BCM6764
• CPU Details: 2.0 GHz Quad-Core, ARM Cortex-A7
• Memory/Storage
• Flash/ROM: 128 MB (1 Gbit) NAND
• DDR/RAM: 512 MB (4 Gbit) DDR3L
• Wireless
• Wi-Fi Standards: Wi-Fi 7
• Max Wi-Fi Modulation: 4K-QAM
• Wi-Fi Efficiency:
  • MLO
  • MRU
  • Puncturing
  • OFDMA
  • MU-MIMO
  • BSS Color
• Max Capacity: 512
• Recommended Client Upper Limit: 200
• Max Wi-Fi Channel Width: 160 MHz
• Wi-Fi Security: WPA/WPA2/WPA3
• Guest Network: 2.4 GHz, 5 GHz
• WPS: True
• 5 GHz Wi-Fi Speed: 2882 Mbps
• 2.4 GHz Wi-Fi Speed: 688 Mbps
• 5 GHz Wi-Fi Streams: 2T2R (2×2 MIMO)
• 2.4 GHz Wi-Fi Streams: 2T2R (2×2 MIMO)
• Wi-Fi Antennas: 4× Fixed
• 5 GHz Antenna Gain Max: 6.8dBi
• 2.4 GHz Antenna Gain Max: 5.2dBi
• FEM or PA/LNA:
  • 5 GHz: 2× External
  • 2.4 GHz: 2× Internal
• Beamforming: True
• Range Performance: Max: 220 m
• Wall Performance:Two wooden/concrete walls with thickness < 10 cm
• One concrete wall with thickness < 20 cm
• Interfaces
• Gigabit RJ45 Ports: 4
• Ethernet Notes: 1× WAN port, the rest are LAN ports
• LED:
  • System
  • Internet
  • WAN
  • LAN
  • 2.4 GHz Wi-Fi
  • 5 GHz Wi-Fi
• Physical Buttons:
  • WPS Button
  • Reset Button
• Power Input: DC Jack
• Power
• Power Methods: DC
• DC: 12V 1A
• Power Adapter:Input: 100 ~ 240 V, 50/60 Hz AC
• Output: 12V 1A DC
• Max Power Consumption: 8.5W
• Reliability
• Operating Temperature: 0 ℃ ~ 40 ℃
• Storage Temperature: -40 ℃ ~ 70 ℃
• Humidity: 10% ~ 90% non-condensing
• Storage Humidity: 5% ~ 95% non-condensing
• Certifications: FCC, CE
• Mechanical
• Installation: Desktop
• Device Dimensions: 20.9 × 4.8 × 22.04 cm
• Antenna Length: 17.5 cm
• Product Weight 339.8 g

WHAT’S IN THE BOX:

• Cudy BE3600E Wi-Fi 7 Gigabit Router x1
• Power Adapter x1
• Ethernet Cable x1
• Installation Guide x1
