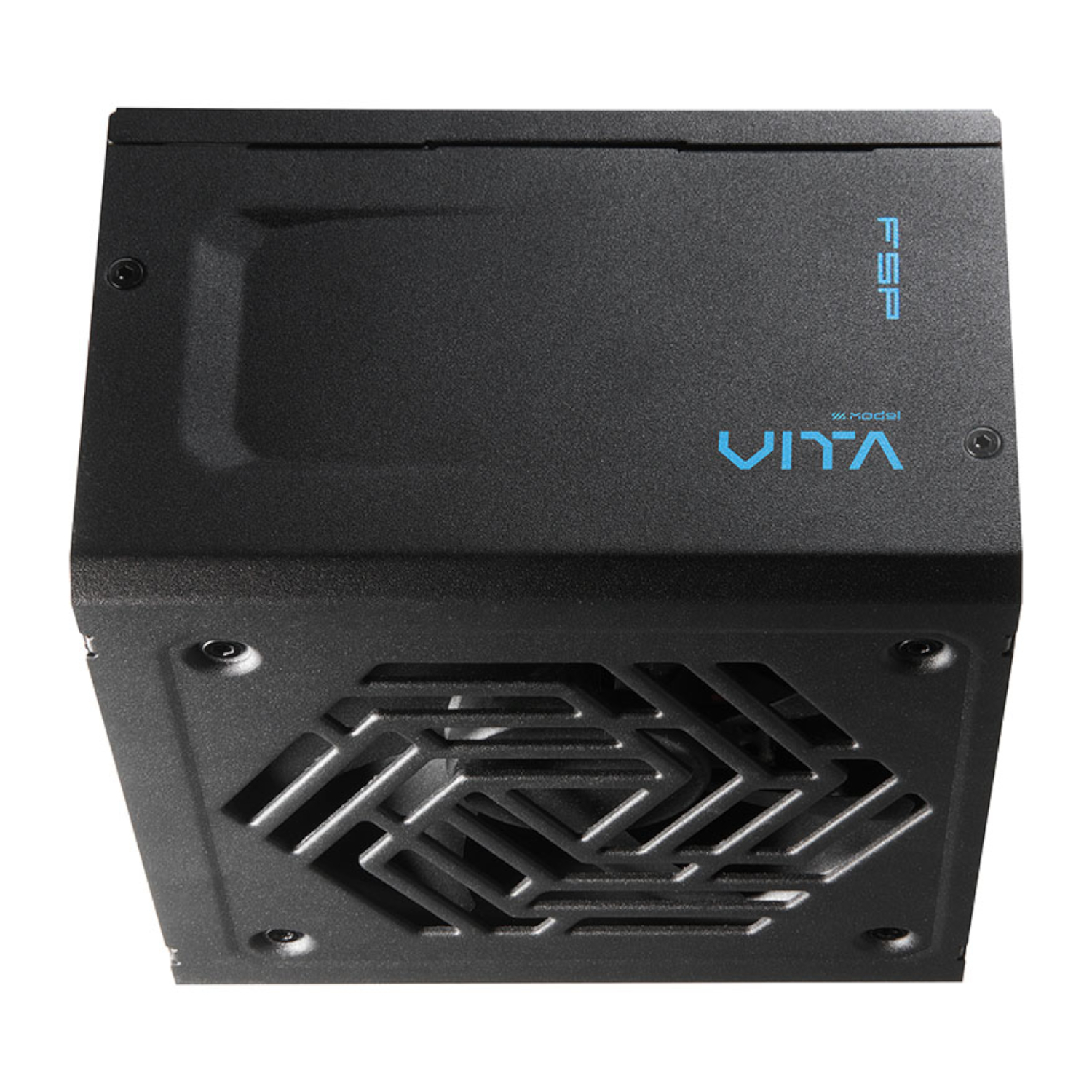

FSP VITA BD 850W 80PLUS Bronze ATX3.1 Non-modular Power Supply

Quick Specs

• Delivers stable 850W power for demanding PC builds.
• 80PLUS Bronze certified, ensuring 88% efficiency under typical loads.
• Equipped with a quiet 120mm sleeve bearing fan for optimal cooling.
• Comprehensive protection (OVP, OCP, OPP, OTP, SCP, UVP, SIP, NLO) safeguards your components.
• Backed by a 5-year warranty for peace of mind.

Power Your System with Reliable Efficiency

When building a gaming rig or high-performance PC, a dependable PC power supply is essential. The FSP VITA BD 850W provides stable and efficient power, ensuring your components perform optimally.

80PLUS Bronze Certification for Energy Savings

The 80PLUS Bronze certification guarantees that this ATX power supply operates at a minimum of 88% efficiency under typical loads. This reduces energy waste, lowers your electricity bill, and keeps your system running cool.

Silent Cooling for Uninterrupted Performance

Featuring a 120mm sleeve bearing fan, the FSP VITA BD 850W delivers effective cooling with minimal noise. This allows you to focus on your game or work without distractions.

Comprehensive Protection for Component Safety

Protect your investment with multiple safety features, including OVP (Over Voltage Protection), OCP (Over Current Protection), OPP (Over Power Protection), OTP (Over Temperature Protection), SCP (Short Circuit Protection), UVP (Under Voltage Protection), SIP (Surge & Inrush Protection), and NLO (No Load Operation). These protections ensure the safety and longevity of your components.

Designed for Compatibility and Ease of Use

The FSP VITA BD 850W is designed to meet ATX12V V3.1 standards, ensuring compatibility with a wide range of motherboards and PC cases. Its non-modular design offers straightforward installation.

FEATURES:

• Deliver stable 850W power to support high-performance CPUs and GPUs.
• Maximise energy efficiency with 80PLUS Bronze certification, reducing heat and energy costs.
• Maintain quiet operation using a 120mm sleeve bearing fan for effective cooling.
• Safeguard components with OVP, OCP, OPP, OTP, SCP, UVP, SIP, and NLO protections.
• Ensure broad compatibility by adhering to ATX12V V3.1 standards.
• Enjoy peace of mind with a 5-year warranty, reflecting product reliability.

SPECIFICATIONS:

• Rated Output Power: 850W
• Form Factor: ATX12V V3.1
• 80 PLUS Certification: 230V EU Bronze
• Input Voltage: 200-240V
• Input Current: 6A
• Input Frequency: 50-60Hz
• PFC: Active ≧ 0.9
• Efficiency(at typical load): ≥88% at typical load
• Fan Type: Sleeve Bearing, 120mm
• Operation Temperature: 40°C
• Protection: OVP, OCP, OPP, OTP, SCP, UVP, SIP, NLO
• Warranty: 5 Years
• Product Dimensions: 14 x 15 x 8.6 cm
• Connectors:
  • MB 24 PIN: 1
  • CPU 8 PIN/CPU 4+4 PIN: 1
  • PCIe 6+2 PIN(4 Connectors): 2
  • PCIe 12V-2×6: 1
  • SATA (4 Connectors): 1
  • MOLEX/SATA (2/2 Connectors): 1

WHAT’S IN THE BOX:

• FSP VITA BD 850W 80PLUS Bronze ATX3.1 Non-modular Power Supply x1

Why FSP?

FSP is a globally recognised PC power supply manufacturer known for reliability and value. With decades of experience, FSP ATX power supplies are a favourite for system builders worldwide. The FSP VITA series offers South African gamers and PC enthusiasts a dependable and affordable power solution.
