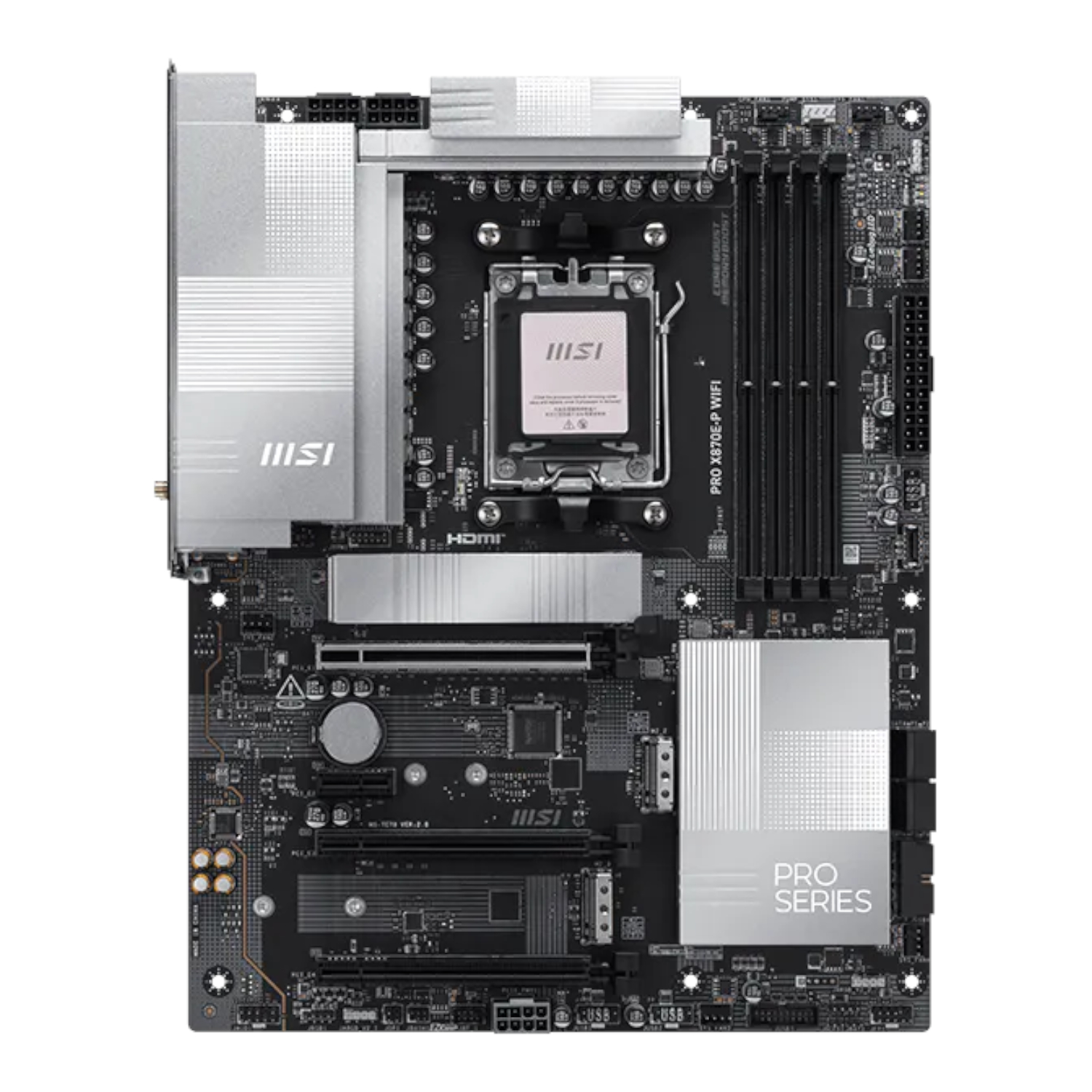

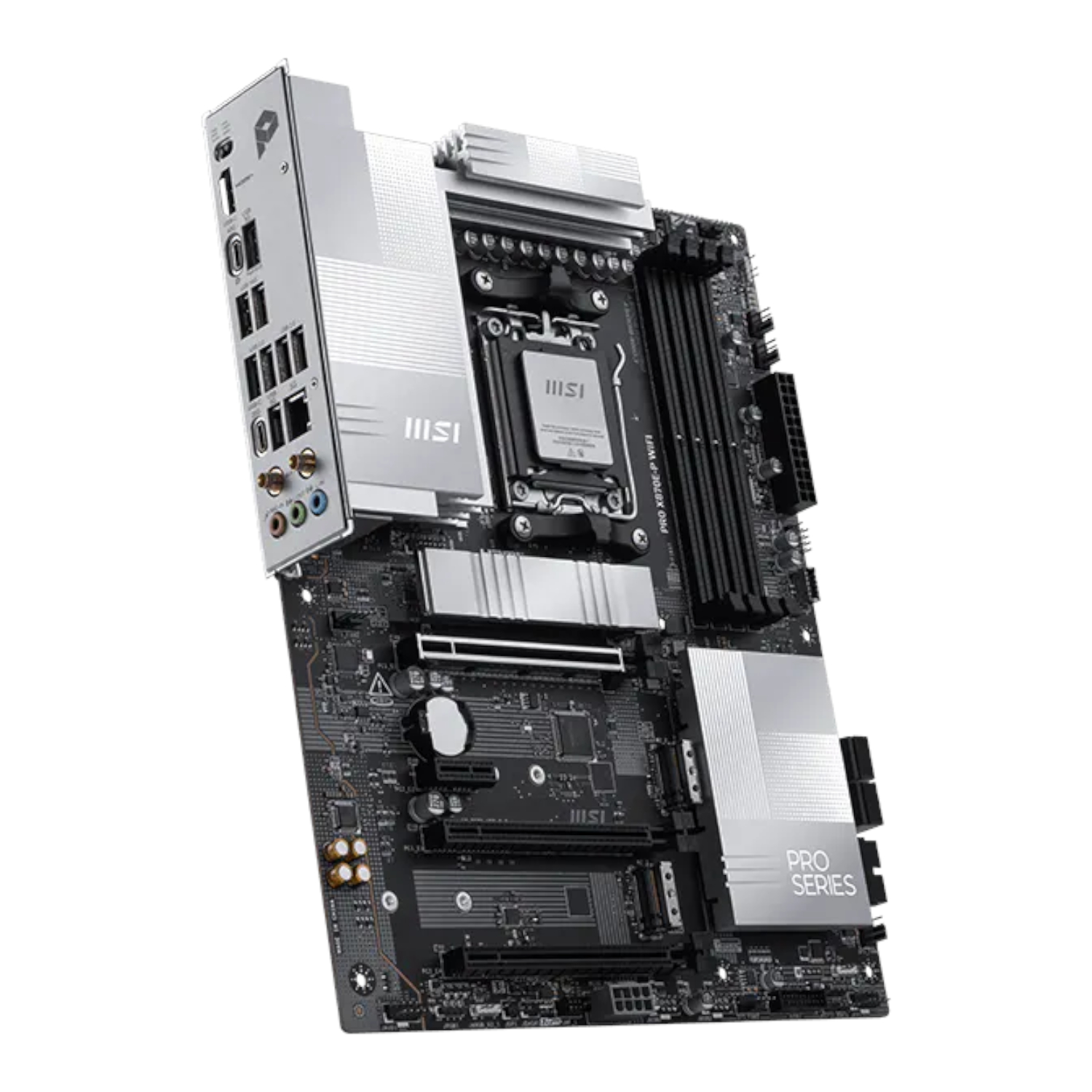

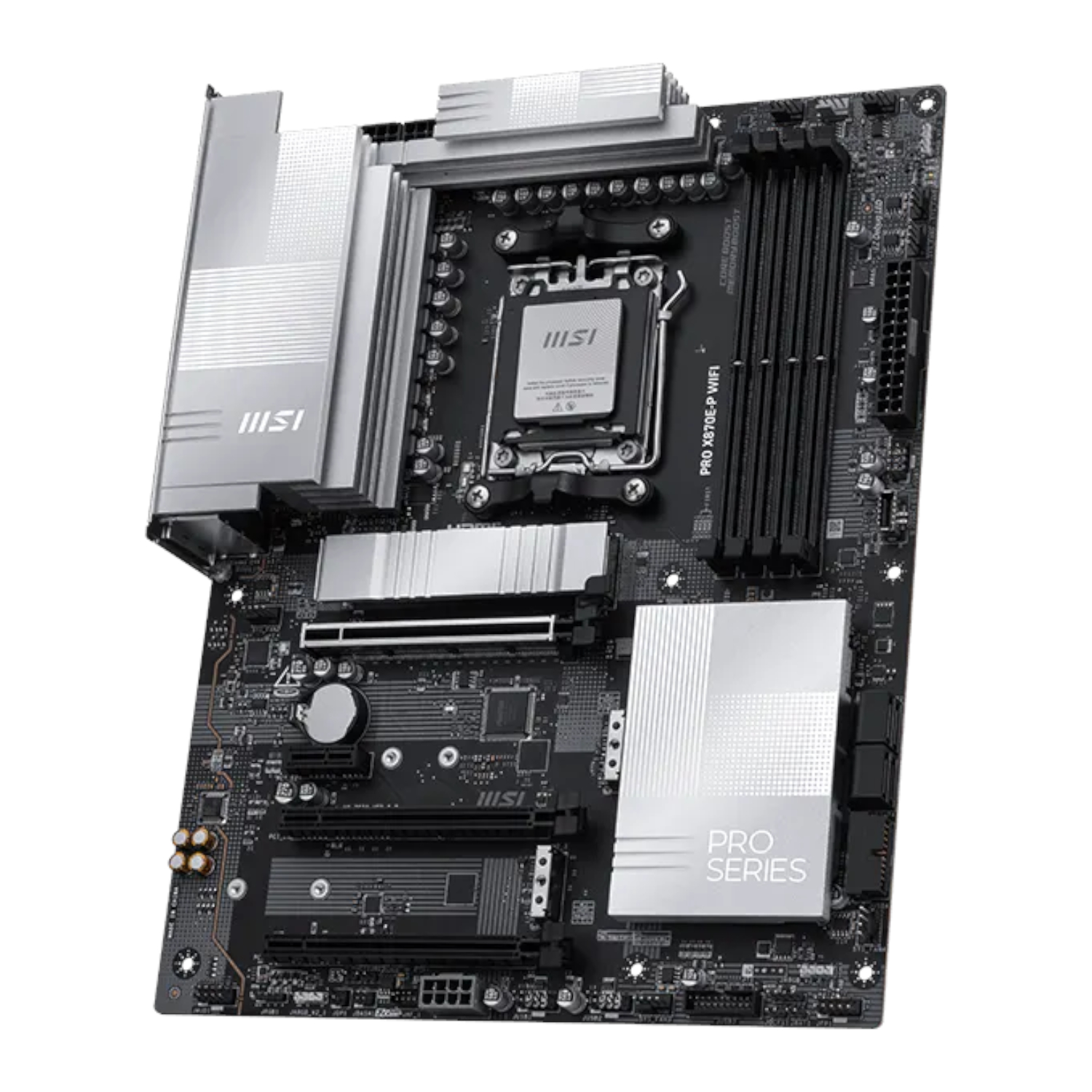

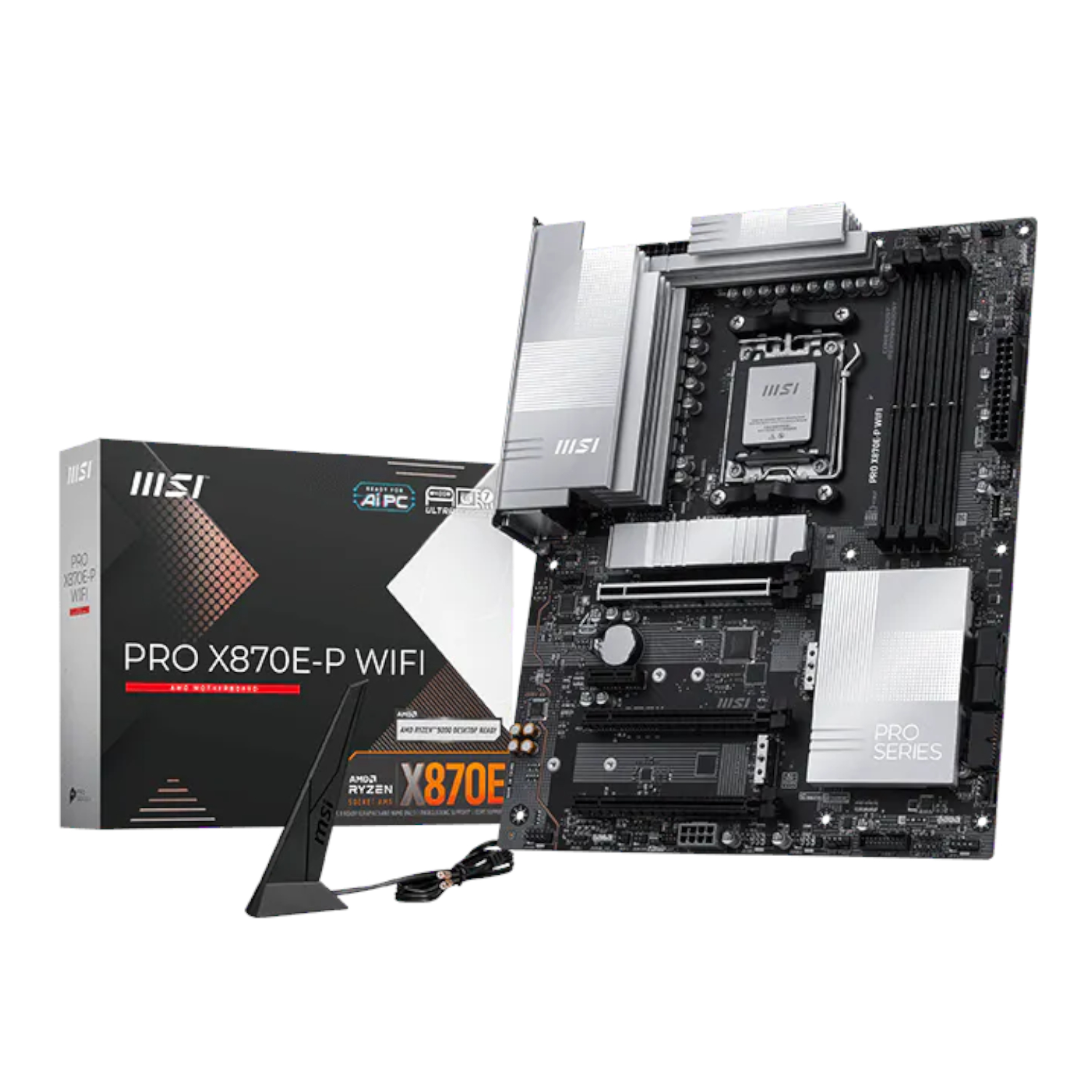

MSI PRO X870E-P WIFI AM5 ATX Motherboard

Unleash raw power with a robust 14+2+1 power system and achieve peak performance with advanced cooling solutions and next-gen connectivity for an unparalleled computing experience.

Quick Specs

• Experience uncompromising power delivery with a 14+2+1 Duet Rail system and dual 8-pin CPU connectors.
• Maintain optimal temperatures with advanced Frozr Guard cooling, featuring extended heatsinks and 7W/mK thermal pads.
• Enjoy lightning-fast data transfer with PCIe 5.0 and Lightning Gen 5 x4 M.2 slots for ultimate speed.
• Connect at unprecedented speeds with USB4 and 5G LAN, complemented by the latest Wi-Fi 7 solution.
• Immerse yourself in superior audio quality thanks to the Audio Boost feature, delivering studio-grade sound.

For the demanding builder in South Africa, the MSI PRO X870E-P WIFI AM5 motherboard is the bedrock of a high-performance system.

This is not merely a component; it is the central nervous system for your next-generation PC, engineered for those who push the boundaries of what is possible. Whether you are crafting a formidable gaming rig, a powerhouse for content creation, or a robust workstation for complex simulations, this ATX motherboard provides the stability, speed, and features to exceed expectations. It is designed for the discerning user who understands that true performance begins with a foundation built on uncompromising quality and cutting-edge technology. Experience the pinnacle of computing with this exceptional AM5 motherboard.

Engineered for extreme performance and stability

At the core of the PRO X870E-P WIFI lies its formidable 14+2+1 Duet Rail Power System, coupled with dual 8-pin CPU power connectors. This robust power delivery ensures that even the most demanding processors receive stable and consistent power, crucial for overclocking and sustained peak performance. Supported by MSI’s Core Boost and Memory Boost technologies, alongside an 8-layer PCB constructed with 2oz thickened copper and server-grade materials, this motherboard offers superior signal integrity and thermal dissipation, guaranteeing reliability for non-stop operation. This robust DDR5 motherboard is built to last.

Advanced cooling for sustained dominance

High performance demands effective cooling. MSI’s Frozr Guard system is designed to keep your components running optimally under any load. The extended heatsink, combined with MOSFET thermal pads rated at an exceptional 7W/mK and additional choke thermal pads, efficiently manages heat generated by power-intensive components. The EZ M.2 Shield Frozr II ensures your M.2 SSDs remain cool, preventing thermal throttling and maintaining blistering storage speeds for a seamless, high-performance experience. This advanced cooling is essential for any high-performance motherboard.

The gateway to next-generation speed

Embrace the future of connectivity and performance with the PRO X870E-P WIFI. Featuring a PCIe 5.0 slot, it provides double the bandwidth of PCIe 4.0, essential for the latest high-performance graphics cards. Complementing this is the Lightning Gen 5 x4 M.2 slot, offering unprecedented read and write speeds for NVMe SSDs, dramatically reducing load times and improving system responsiveness. This combination ensures that your system is equipped for the most demanding applications and games, now and in the future. The speed offered by these motherboards is truly transformative.

Seamless connectivity for every need

Stay ahead of the curve with cutting-edge connectivity options. The inclusion of USB4 ports delivers high-speed data transfer, display output, and power delivery over a single connection. The integrated 5G LAN port, powered by a Realtek® 8126VB controller, provides ultra-fast, stable, and secure wired networking, ideal for large file transfers and online gaming. Paired with the latest Wi-Fi 7 solution, this motherboard offers unparalleled wireless performance, ensuring you have the fastest and most reliable connection for all your professional and multimedia needs. Upgrade your setup with these cutting-edge motherboards.

An auditory feast for immersive experiences

MSI’s Audio Boost technology transforms your audio experience. By utilising studio-grade components and intelligent circuit design, it delivers pristine sound quality with exceptional clarity and depth. Whether you are engaging in intense gaming sessions, enjoying your favourite music, or watching movies, the immersive audio provided by Audio Boost will place you directly in the centre of the action, enhancing every auditory detail for a truly captivating experience. This AM5 motherboard ensures every sound is heard.

FEATURES:

• Empower your system with the uncompromising 14+2+1 Duet Rail Power System and dual 8-pin CPU power connectors for superior power delivery on this AM5 motherboard.
• Maintain peak performance and system stability with the Frozr Guard cooling solution, featuring extended heatsinks and high-grade thermal pads essential for DDR5 motherboards.
• Accelerate your workflow and gaming with the cutting-edge PCIe 5.0 slot and Lightning Gen 5 x4 M.2 for unparalleled speed, a hallmark of premium motherboards.
• Experience future-proof connectivity with USB4 and a 5G LAN port, enhanced by the latest Wi-Fi 7 solution for blazing-fast networking on these advanced motherboards.
• Elevate your gaming and multimedia with Audio Boost, delivering studio-quality sound for an immersive auditory experience.
• Simplify your build process with EZ DIY features, including EZ M.2 Shield Frozr II, EZ M.2 Clip II, EZ PCIe Clip II, and EZ Antenna.
• Ensure broad compatibility with support for Windows® 11 64-bit operating systems.

SPECIFICATIONS:

• Chipset: Intel X870E
• CPU Support:
  • Supports AMD Ryzen™ 9000/ 8000/ 7000 Series Desktop Processors
  • Socket AM5
• Memory:
  • 4x DDR5 UDIMM, Maximum Memory Capacity 256GB
  • Memory Support DDR5 8200 – 5600 (OC) MT/s / 5600 – 4800 (JEDEC) MT/s
  • Ryzen™ 9000 Series Processors max. overclocking frequency:
  • 1DPC 1R Max speed up to 8200+ MT/s
  • 1DPC 2R Max speed up to 6400+ MT/s
  • 2DPC 1R Max speed up to 6400+ MT/s
  • 2DPC 2R Max speed up to 6400+ MT/s
  • Supports AMD POR Speed and JEDEC Speed
  • Supports Memory Overclocking and AMD EXPO™
  • Supports Dual-Channel mode
  • Supports Non-ECC, Un-buffered memory
  • Supports CUDIMM, Clock Driver bypass mode only
• Onboard Graphics:
  • 1x HDMI™
  • Support HDMI™ 2.1 FRL, maximum resolution of 4K 60Hz*
  • 1x Type-C DisplayPort
  • USB4® port, supporting DisplayPort 1.4 with HBR3 over USB Type-C, maximum resolution of 4K 600Hz*
  • *Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed.
• Slot:
  • 3x PCI-E x16 slot
  • 1x PCI-E x1 slot
  • PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU)
  • PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset)
  • PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset)
  • PCI_E4 Gen PCIe 3.0 supports up to x1 (From Chipset)
  • PCI_E1 slot
  • Supports PCIe 5.0 x16 (For Ryzen™ 9000/ 7000 Series processors)
  • Supports PCIe 4.0 x8 (For Ryzen™ 8700/ 8600/ 8400 Series processors)
  • Supports PCIe 4.0 x4 (For Ryzen™ 8500/ 8300 Series processor)
• Audio:
  • Realtek® ALC897 Codec
  • 7.1-Channel High Definition Audio
•  Storage:
  • 3x M.2
  • M.2_1 Source (From CPU) supports up to PCIe 5.0 x4 , supports 2280/2260 devices
  • M.2_2 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devices
  • M.2_3 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 22110/2280 devices
  • 4x SATA 6G
  • M2_1 slot
  • Supports up to PCIe 5.0 x4 (For Ryzen™ 9000/ 7000 Series processors)
  • Supports up to PCIe 4.0 x4 (For Ryzen™ 8000 Series processors)
•  RAID:
  • Supports RAID 0, RAID 1, and RAID 10 for SATA storage devices
  • Supports RAID 0, RAID 1 and RAID 5 for M.2 NVMe storage devices

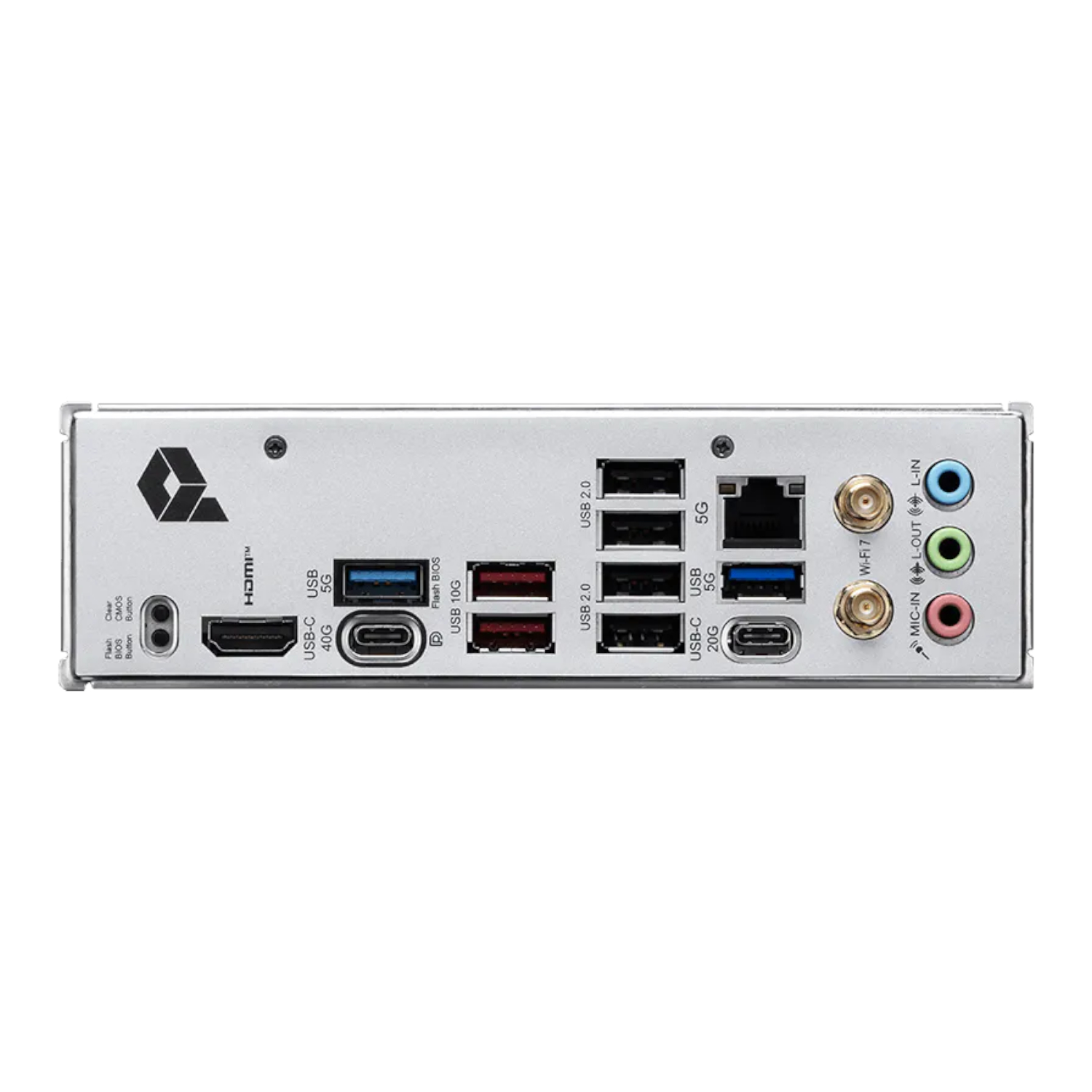

•  USB:
  • 4x USB 2.0 (Rear)
  • 6x USB 2.0 (Front)
  • 2x USB 5Gbps Type A (Rear)
  • 4x USB 5Gbps Type A (Front)
  • 2x USB 10Gbps Type A (Rear)
  • 1x USB 10Gbps Type C (Front)
  • 1x USB 20Gbps Type C (Rear)
  • 1x USB 40Gbps Type C (Rear)
• LAN: 1x Realtek® 8126VB 5G LAN
• Wireless LAN & Bluetooth:
  • Wi-Fi 7
    The Wireless module is pre-installed in the M.2 (Key-E) slot
    Supports MU-MIMO TX/RX, 2.4GHz/ 5GHz/ 6GHz* (320MHz) up to 5.8Gbps
    Supports 802.11 a/ b/ g/ n/ ac/ ax/ be
  • Supports Bluetooth® 5.4**, MLO, 4KQAM
• Internal IO:
  • 1x Power Connector(ATX_PWR)
  • 2x Power Connector(CPU_PWR)
  • 1x Power Connector(PCIE_PWR 8pin)
  • 1x CPU Fan
  • 1x Combo Fan (Pump_Sys Fan)
  • 6x System Fan
  • 1x EZ Conn-header (JAF_1)
  • 2x Front Panel (JFP)
  • 1x Chassis Intrusion (JCI)
  • 1x Front Audio (JAUD)
  • 1x Tuning Controller connector(JDASH)
  • 3x Addressable V2 RGB LED connector (JARGB_V2)
  • 1x RGB LED connector(JRGB)
  • 1x TPM pin header(Support TPM 2.0)
  • 6x USB 2.0 ports
  • 4x USB 5Gbps Type A ports
  • 1x USB 10Gbps Type C ports
• LED Feature:
  • 4x EZ Debug LED
  • 1x EZ Memory Detection LED
• Operating System: Support for Windows® 11 64-bit
• Form Factor: ATX
• Colour: Black

WHAT’S IN THE BOX:

• MSI PRO X870E-P WIFI AM5 ATX Motherboard x1
• EZ Wi-Fi Antenna x1
• SATA Cables x2
• EZ M.2 Clip II Remover x1
• EZ M.2 Clip II x3
• 1 to 2 EZ Conn-cable (V1) x1
• Quick Installation Guide x1

Why MSI?

MSI is a globally recognised leader in gaming and professional hardware. For South African builders, MSI offers a commitment to innovation, performance, and reliability, ensuring each component meets the highest standards for both gaming and productivity. Trust MSI to build your next masterpiece with their exceptional motherboards.
